Isingeniso Sokukhiqiza

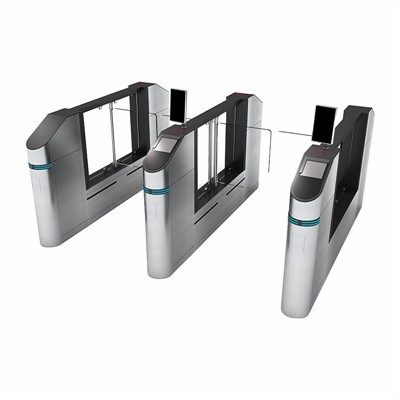

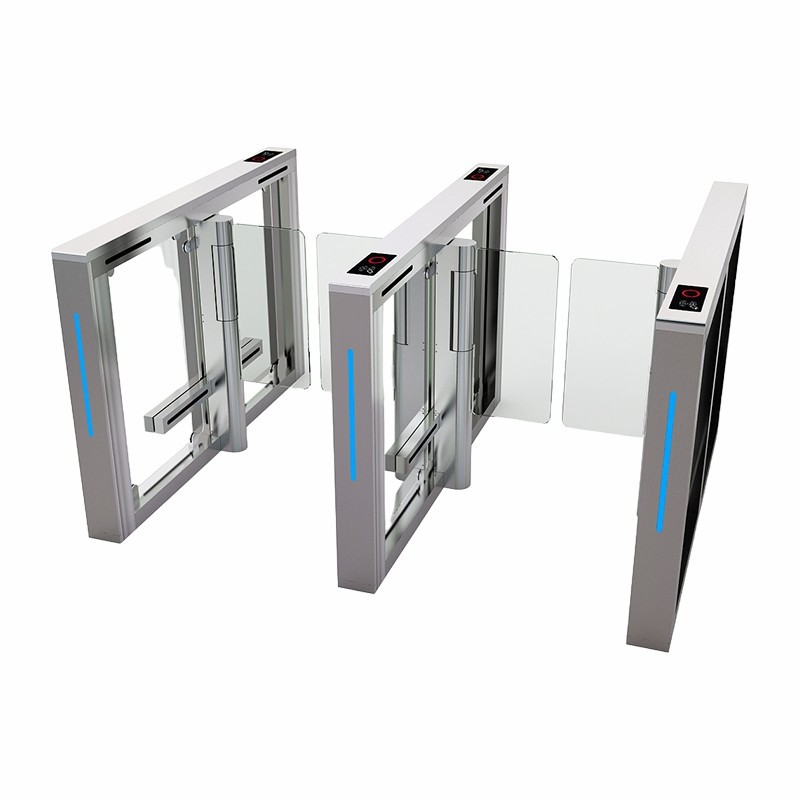

Iqhaza le-smart infrared sensor gate turnstile emadolobheni ahlakaniphile azayo

Njengengxenye ebalulekile yamadolobha ahlakaniphile, i-speed gates turnstile akuzona nje ezokulawula ukufinyelela ezindaweni ezibonakalayo kodwa futhi zisebenza njengamafasitela okugeleza kwedatha yasemadolobheni kanye nezinsizakalo ezihlakaniphile.

☆I-smart infrared sensor gate gate turnstile ingasebenza izinzile futhi isheshe (ijubane liyalungiseka).

☆ I-speed gate turnstile ingasetha imodi yokusebenza ye-turnstile ngokulawula idivayisi yesikrini sokuthinta.

☆Ijubane lesango elijikajikayo liyimoto entsha ye-clutch servo enokunyakaza.

☆ Isango lejubane elijikayo lemoto enedivayisi yomkhawulo wokufaka ikhodi, lenza umsebenzi we-turnstile unembe kakhudlwana nangempumelelo.

☆ Isango lejubane elijikajikayo lokuvumelanisa umsebenzi liyalungiseka.

☆Isiqondiso se-LED sizokwazisa isimo sokudlula.

☆I-speed gate turnstile ingahlanganisa nohlelo lokulawula ukufinyelela komnyango, uhlelo lokuphatha amathikithi, uhlelo lwe-ESD …..

Inzuzo yomkhiqizo

Kuphephile

Idizayini yezoni yenzwa yamaleveli amaningi, efaka ngokugcwele izindawo zokuphepha nezokuphepha, kanye{0}}nokuqapha kwesikhathi sangempela sabahamba ngezinyawo nezinto.

Iyahambisana

I-Smart infrared sensor gate turnstile ehambisana namadivayisi okuhlonza afana namakhadi e-IC, amakhadi e-ID amakhadi ekhodi yebha, izikena zeminwe, nezinhlelo zokulawula ukufinyelela.

Ubuhlakani

Ingaphatha ngokuqondile amadivayisi ngesilawuli kude ngesikhungo sokuphatha esimaphakathi.

Ukulawulwa kwe-elekthronikhi okuzinzile

Ukwamukela-ibhodi elikhulu elishumekiwe lezinga lezimboni, elinamandla okulwa{1}}nokuphazamisa, elisekela ukusebenza okuqhubekayo kwamahora angu-7×24.

Elula

Ukwakhiwa okulula, amasiginali{0}}esikhathi sangempela wokusebenzisana phakathi kwemishini ngokuxhumana kwe-CAN (3-core wire), kanye nokuhambisana nesikhathi okuqinile kokusabela kwesisetshenziswa.

Imingcele Yezobuchwepheshe

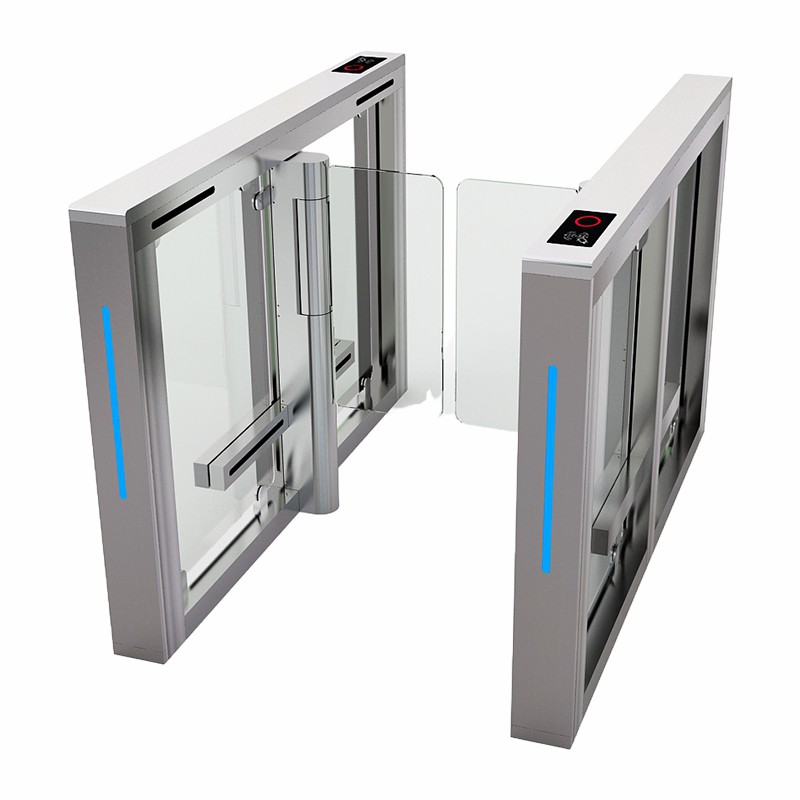

Imodeli	YD_R810ST
Okubalulekile	ezifuywayo standard 304 insimbi engagqwali
I-voltage esebenzayo	110VAC, 50HZ/60HZ 100W
Shayela injini	I-Servo motor
Ubukhulu	L1600* W160* H1010MM
Ububanzi besiteshi	500MM-1100MM
Inkomba yohambo	indlela eyodwa-noma ezimbili-(ingasethwa)
Indawo yokusebenza	endlini, ngaphandle (umthunzi) -10℃C ~ 50℃C Umswakama ohlobene: Ngaphansi noma okulingana no-90%, akukho ukujiya
Isikhathi sokuvula nokuvala isango	1 isekhondi
Isivinini esidlulayo	30-35 abantu / iminithi
Isikhathi esidingekayo ukuze ungene esimweni sethrafikhi ngemuva kokuthi amandla-avuliwe	3 imizuzwana
Impahla yengalo yokushwiba	Ingalo yokushwibeka yengilazi epholile kanye nengalo yokushwibeka ye-acrylic (kuyakhetheka)
MTBF	izikhathi ezingaphezu kwezigidi ezingu-10
Okokufaka kubonwa	relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA
